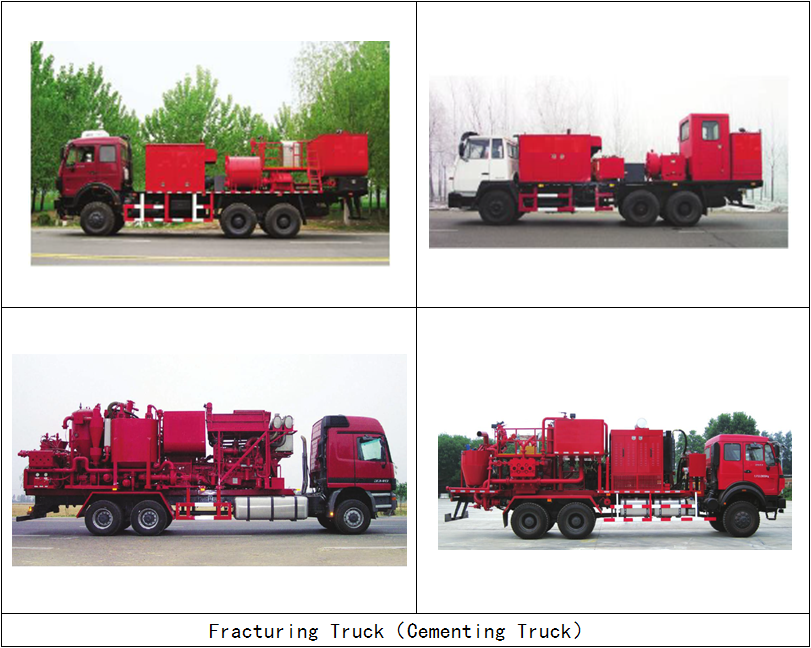

Fracturing Truck（Cementing Truck）
Product introduction: it is a special oil vehicle refitted from automobile chassis, mainly used for oilfield water injection, well cementation, fracturing and pressure test.
Product features: its power is provided by the diesel engine on the platform, and it is equipped with a three cylinder plunger pump with high pressure and large displacement. It has the characteristics of stable medium flow, high operation efficiency, simple operation system, safe and reliable operation, convenient maintenance, etc. it is an ideal equipment for oilfield fracturing operation.
Product classification: it is classified by drive type, including mechanical drive fracturing truck and hydraulic drive fracturing truck. Mechanical transmission fracturing truck uses mechanical gearbox to drive triplex plunger pump; hydraulic transmission fracturing truck uses hydraulic torque converter to drive triplex plunger pump. The control system can provide remote control box, over pressure alarm protection and other functions.
Of course, it can also be manufactured into a skid mounted structure to meet the needs of different user groups.
Main Technical Parameters | |||||
Name | Unit | Parameter | |||
Max. working pressure | MPa | 40 | 70 | 105 | |
Max. working displacement | m3/h | 100 | 70 | 120 | |
Mixing system | Mixing density | g/cm3 | / | / | 1.0-2.4 |
Mixing capacity | m3/min | / | / | 0-2.3 | |
Max. volume of matching water tank | m3 | 2 | 2 | 2+2 | |
